vMod for non-reference GTS250

[chickenbeef]

I'm looking for a vMod for an Inno3D GTS250 Green Edition .

If you need me to take any readings just post in the thread and I will do it

[Chiller]

Here you go, google is you're best friend, what trimmer you need, you can test it yourself :

[chickenbeef]

Thank you very much!

[Chiller]

i'm not done yet, next picture will come to

[Chiller]

For lower you're Vdrop when overclocking add caps.
For GPU you need 2.5v caps, MEM you need 4v or 6.3v caps.

When you measure point with multimeter, ground on IO-Shield,
You find points that gives you voltage on caps for GPU, you add there 2.5v caps.

Where you measure on caps near mem chips on backside of pcb, you add 4v or 6.3v caps.

Some examples what i can see on bad quality pics from you







the you get something like this with all kind of caps on it,

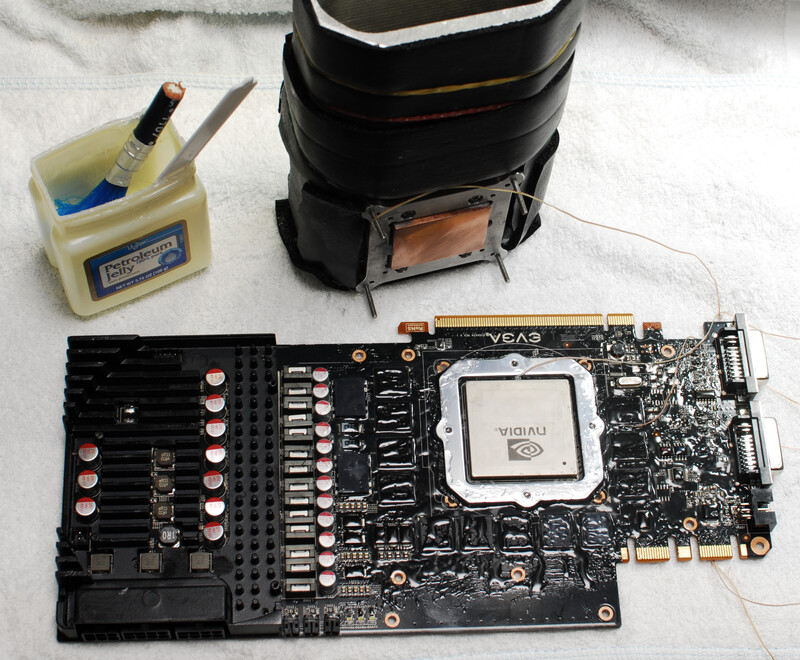

this is a vga from me i will put under LN² this week :

[chickenbeef]

Yeah, sorry about the quality. Took them with my phone as my camera died recently .

How do you insulate the back of the card by the GPU area with all those caps?

I'm thinking of putting all caps on one end of the card and running wires to the solder points, this will work right? Would make it easier to spread the art eraser too.

[Chiller]

legs of caps need to be as short as possible otherwise no effect.
don't use wire, isolating is no problem, use vaseline (petroleum jelly, dirty stuff) and heat it up, so it melts all over you card like Tin uses it.
Or you can use Dragon-skin, latex etc......

Or use kneading gum for kids like i do, you can put it everywhere between it.

[chickenbeef]

Aha, I'll go with the vaseline. Thanks again

[Chiller]

no problem, don't forget the post results of OC here

[BenchZowner]

Vaseline all the way
