Making usable voltage meter for vmods and extreme benching

[TiN]

Yes, latest revisions is what you see here on photos.

Actually there is even more new revision, but not covered in files yet.
Everything same, but added AD amplifier as voltage buffer , to isolate probes from meter.

[Chiller]

i whant one

[stabias]

do it

[nigel]

I love it Tin.
Going to have a talk to some people here.
Because flashing chips is not somthing that I can do

Thanks for sharing!

[TiN]

It's actually easy, and possible to do with just 5 wires and PC with LPT port :P

Chiller

Sorry, man, i have no spare parts for this

[Chiller]

damn, always bad luck lattlely

[TiN]

I did this project about 4 years ago

[TiN]

Small update

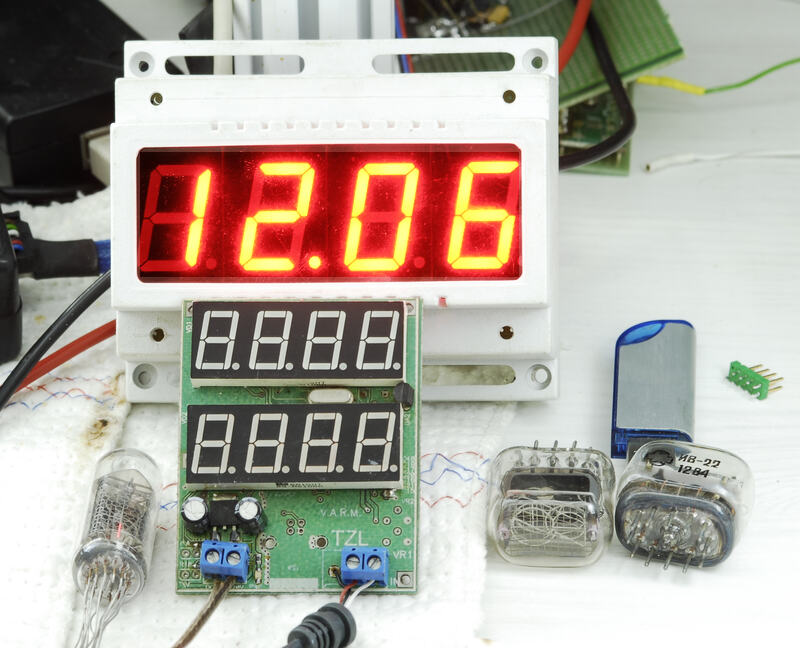

Made similar meter with bigger display and DIN-mount enclosure.

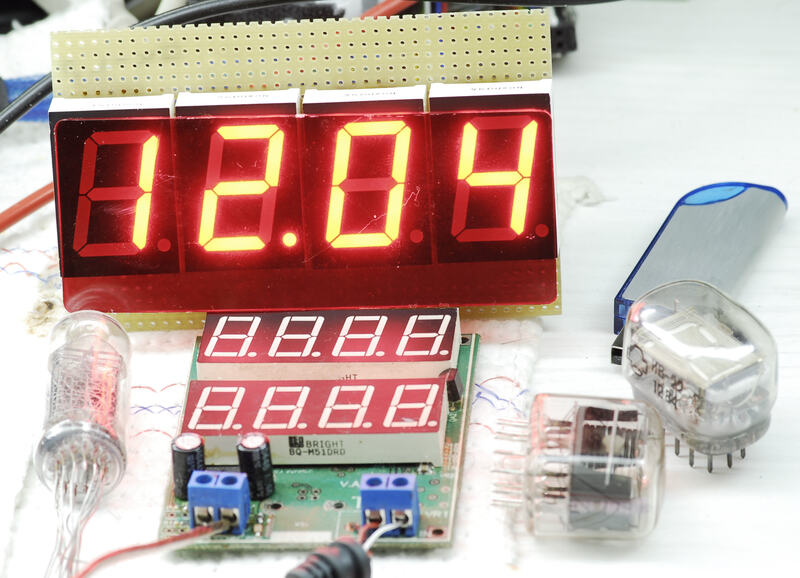

w/o case:



Fitted on breadboard, so easy to modify. Single-display this time.

More to come soon

[s0lid]

TiN the dev.xdevs.com isn't replying.
I'd like to grab the schemastic and source code from there :|

[0skill]

i`ve got the whole package
i`ve downloaded it 3 month ago but i cant open PCB and SCH files dont know why
tried it with Express PCB and PCB Wizard3 but no way
if you want it i`ll upload the package to rapidshare or anything else
mybe you can help me to open this files
